Floorplan - 2016 Forest River RV Cardinal 3250RL
-
-
-
-
1 of 6
+6-
Sleeps 4
-
3 Slides
-
Rear Living AreaFront Bedroom
-
36ft Long
-
12,201 lbs

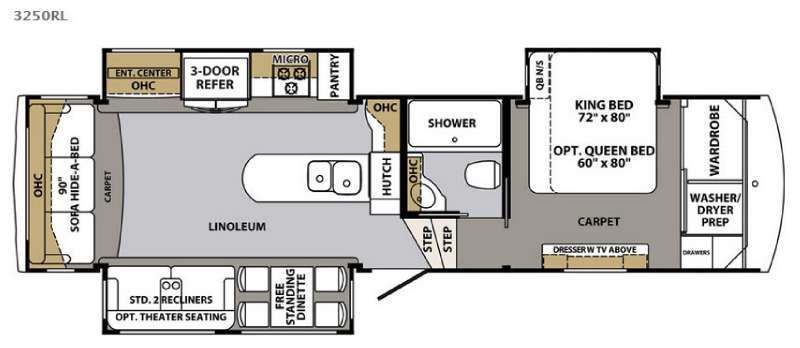

3250RL Floorplan
3250RL Floorplan
Specifications
Specifications
| Sleeps | 4 | Slides | 3 |
| Length | 36 ft 3 in | Ext Width | 8 ft 6 in |
| Ext Height | 13 ft 6 in | Hitch Weight | 2252 lbs |
| GVWR | 14252 lbs | Dry Weight | 12201 lbs |
| Cargo Capacity | 2051 lbs | Fresh Water Capacity | 64 gals |
| Grey Water Capacity | 80 gals | Black Water Capacity | 40 gals |
| Furnace BTU | 42000 btu | VIN | 4X4FCAJ26GG101868 |
Description
Description
This Cardinal Fifth Wheel by Forest River features triple slides for plenty of space to enjoy, a rear living layout, and a front bedroom.
Step inside and head to the right up a couple of steps to a complete bath and front master bedroom. The bath offers a shower, toilet, and vanity with sink, plus overhead cabinets for storage. A sliding door just outside the bathroom leads into the front master where you will enjoy a spacious retreat with king bed slide, or optional queen which will provide a bit more walking around space and room in the side for a nightstand. There is also a dresser opposite the bed with a TV above, and a front wall wardrobe with closet washer/dryer prep, and drawer space too.
Back to the main entry door continue into the combined kitchen and living space with dual opposing slides. There is a slide with a free standing dinette and two recliners or you can choose optional theater seating. Along the rear wall find more seating with a 90" hide-a-bed sofa. Adjacent to the sofa there is a slide with an entertainment center, refrigerator, microwave, three burner range, and pantry.
Next to the slide there is extra counter space, an overhead cabinet, hutch, large counter, and double kitchen sink, plus more!
Step inside and head to the right up a couple of steps to a complete bath and front master bedroom. The bath offers a shower, toilet, and vanity with sink, plus overhead cabinets for storage. A sliding door just outside the bathroom leads into the front master where you will enjoy a spacious retreat with king bed slide, or optional queen which will provide a bit more walking around space and room in the side for a nightstand. There is also a dresser opposite the bed with a TV above, and a front wall wardrobe with closet washer/dryer prep, and drawer space too.
Back to the main entry door continue into the combined kitchen and living space with dual opposing slides. There is a slide with a free standing dinette and two recliners or you can choose optional theater seating. Along the rear wall find more seating with a 90" hide-a-bed sofa. Adjacent to the sofa there is a slide with an entertainment center, refrigerator, microwave, three burner range, and pantry.
Next to the slide there is extra counter space, an overhead cabinet, hutch, large counter, and double kitchen sink, plus more!
Features
Features
Standard Features (2016)
Interior
- Hardwood Maple Raised Panel Glazed Cabinet Doors and Drawers
- Hardwood Maple Cabinet Frames (Stiles)
- Crown Molding Cabinet Accents
- Crown Molding Ceiling Trim
- Residential Hidden Hinge Adjustable Cabinet Hardware
- Solid Wood (Baltic Birch) Drawer Boxes
- Ball Bearing, Full Extension Drawer Guides
- Dehco Trekk Wood Plank Linoleum Flooring (3 year Cold Crack warranty)
- Residential Carpet
- Wainscoting
- Satin Nickel Plumbing Fixtures
- Solid Wood Slide-out Fascia Frame
- Decorative Solid Wood Frame Entry Door
- Solid Wood Exit Assist Handle
- Cathedral Ceilings Throughout
Galley
- Coat Closet (Where applicable)
- LG Solid Surface Polished Counter Tops with Under Mount Sink (15 Year warranty)
- Dual Bowl “Giant” Stainless Steel Kitchen Sink
- High Rise Single Handle Pull-down Kitchen Faucet
- Solid Wood Raised Panel Refrigerator Fronts
- Stainless Steel Residential Refrigerator (3250RL, 3455RL, 3825FL, 3850RL, 3875FB)
- Maxx Air Fan with Rain Sensor and Remote
- Flush Floor Galley Slides
- Hardwood Drawers in Pantry
- 8 cu. ft. Gas/Electric Refrigerator (3030RS)
Interior LED Lighting
- LED Lighting Throughout
- Indirect LED Lighting
- Decorative Ceiling Light Above Dinette
- Ceiling Fan
- Pendant Lights in Galley
- Dimmer Switch (Living area only)
Furniture & Window Coverings
- Three Seat Leather Rear Sofa with Hide-A-Bed
- (2) Bonded Leather Swivel Recliners with Lifetime Frame Warranty
- Free Standing Dinette Table with Dual Leafs and Lift-up Storage
- (4) Residential Chairs (2) with Flip -up Storage (2) Folding
- Day/Night Roller Shades (Living Area)
- Night Roller Shades (Bedroom)
- Designer Hard Valance Window Treatments (Where available)
- Designer Soffits (Where available)
Bathroom
- Maxx Air Fan with Rain Sensor and Remote
- Solid Surface Polished Vanity Counter Top with Integrated Bowl (Residential Height)
- Porcelain Toilet With Foot Flush
- Radius Molded Fiberglass One-piece Shower with Seat (3850RL)
- “Mega” Fiberglass Molded Shower (3030RS, 3250RL, 3450RL, 3825FL, 3875FB)
- Shower Skylight/Dome
- Glass Shower Door
- Adjustable Shower Head
- Medicine Cabinet with Mirrored Door
- Dedicated Heat and A/C Duct
Bedroom
- King Bed, Premium, Innerspring Mattress
- Solid Wood Head Board
- Designer Bedspread, Pillows and Sham
- Full Height Hanging Wardrobe
- Stackable/Combo Washer/Dryer Prep
- Washer/Dryer Dual Electrical Outlets (Operates W/D at same time)
- Shoe Caddy
- Cubby Storage
- Chest of Drawers
- Cedar Lined Closet and Drawers
- Under Bed Storage
- Solid Hardwood Slide-out Fascia Frame
- 2 Reading Lights with Individual Controls
- 2 Bed Side Power Outlets
Appliances
- Dometic 8 cu. ft. Double Door Refrigerator (3030RS)
- Residential Refrigerator with 2000W Inverter (3250RL, 34455RL, 3825FL, 3850RL, 3875FB)
- 3-Burner, High Output Range with 22″ Oven and Flush Mount Solid Surface Range Cover
- Range Cover Storage Compartment
- 30" Convection Microwave
- Dyson DC35 Cordless Vacuum
- 42K BTU LP Furnace
- Wired and Framed for Second and Third A/C
- 15K Ducted Dometic Quiet Cool A/C System
- Fireplace
- 12 Gal. Gas/Electric DSI Water Heater
- “Shurflo” On-demand High Output Water Pump (3 g/min at 55 psi)
- Dual 30 lb. Propane Bottles with Auto Switch Over
- LP Leak Detector
- Carbon Monoxide Detector
Electronics
- Function-remote control with Key Fob (Slides, awning, patio light, front jacks and rear jacks)
- 42" LED TV with Heavy Duty Swing Arm (Main living area: 3030RS, 3250RL)
- 58" LED TV (Main living area 3825FL, 3455RL, 3850RL, 3875FB)
- 32″ LED HDTV (Bedroom)
- Furrion Theater System with Bluetooth, HDMI, DVD, AM/FM, Weather Band
- Digital TV Antenna with Signal Booster
- Cable TV Hook-ups (Main living, bedroom)
- Cable TV Hook-up (Exterior garage bulkhead)
- Satellite Prep (Roof mount)
- Exterior Flip-down Speakers in Pass-thru Storage
Electrical Systems
- Centralized Command Center And Monitor Panel
- 70 AMP Converter (Progressive Dynamics)
- 50 AMP Service
- Marine Grade Detachable 50 AMP Power Cord
- 12 Volt Battery Disconnect
- Battery Prep Box (2)
- Energy Management System (Third AC)
Exterior
- High-gloss Colored Gel Coat Exterior (Premium quality and thickness)
- Front Cap: Molded High-gloss Gel Coat Fiberglass with Extended Turning Radius (Chamfered Front)
- Rear Cap: Molded High-gloss Gel Coat Fiberglass
- Laminated Front Bulkhead with High Gloss Gel Coat Fiberglass
- 30″ X 76″ Entry and Screen Door with High Gloss Gel Coat Fiberglass
- 45° Angled Skirting
- Slam Latch 1.5″ Thick Insulated Doors with High Gloss Gel Coat Fiberglass
- Slide End Walls: Laminated with High Gloss Gel Coat Fiberglass
- Automotive Hehr Frameless Windows
- Hydraulic Slide Room Power
- Individual Slide Room Selector Switches
- Roof Ladder
- Dual Aluminum Wrapped Electric Power Awnings with LED Light Strip
- Entry Assist Handle (XL – folding)
- 1.5″ Aluminum Belt Rail with Caps (No exposed screws)
- Roto-cast Spun Seamless Water/Waste Tanks
- Enclosed and Heated Underbelly (Forced air heat)
- Thermostatically Controlled Tank Heat Pads (12 Volt Electric) (Dual heating sources)
- Dual Roof Vents
- LED Tail Lights And Rear Running Lights
- LP Quick Disconnect
Slide Room Seal & Gasket
- Aluminum “H” Frame Slide Room Perimeter
- Dual Neoprene Squeegee Seals
- Exterior and Interior “D” Seals
- Exterior “H” Seal
Exterior Lighting
- LED Docking Lights (4 – mounted into front cap)
- Rear Cap Lighting: White Reverse and Red Running/Brake Lights
- Security Lights (2)
- Amber Patio Light
- Entry Door Auto Threshold Light
- LED Awning Lights
Utility Docking Compartment
- Light (12 Volt)
- Outside Shower (Hot and cold)
- Black Tank Flush System
- Fresh Water Heater Bypass Valve
- Full Coach Water Filtration System
- Winterizing Bypass System
- Protected/Insulated Pull Waste Valves
- Waste Hose Storage Tube
Chassis/Foundation
- I-beam “Z” Frame Powder Coated Chassis
- Chamfered Frame Technology
- 12″ I-beam Frames (10″ I-beam frame 3030RS, 3250RL)
- Dual Axles (7K with 12″ beams) or (6K with 10″ beams)
- Dexter® E-Z Lube® Bearing Lubrication System and Nev-R-Adjust® Brakes
- MOR/ryde 3000 Suspension System
- MOR/ryde 18K Extended Pin Box
- 8 Lug Hubs
- Aluminum Rims 16″
- Goodyear® Premium E-Rated Tires
- Spare Tire (Inside storage mounted)
- Hydraulic Front Jacks
- 8″ Radius Front Jack Pads
- Electric Rear Stabilizing Jacks
- Quad Steel Entry Steps (Triple Steps - 3030RS, 3250RL)
- Pinless Front Jack Legs
- Flush Floor Slide Design with Steel Ramp and Glide Bar (Main slide rooms)
- Hydraulic Slide System with 2″ Steel Rams
- Hydraulic Pump Station with Manual Override
Construction
- Wide Body Construction
- Sidewalls: 2″ Welded Aluminum Framed Vacuum Bonded Laminated Walls
- Roof: 5″ Double Radiused Aluminum Trusses 16″ on Centers
- Roof: Alpha Super Flex II TPO Roof Material
- Front Wall: Welded Aluminum Frame
- Rear Wall: Welded Aluminum Frame
- Floor: 3″ Vacuum Bond Laminated with Welded Aluminum Trusses
- Bath/Bed Deck: Welded Aluminum Frame
- Slide End Walls: 2″ Welded Aluminum Frame, Laminated
- Slide Roof: 2″ Welded Aluminum Frame, Laminated
- Slide Floor: 1″ Wood Flooring
- No Expansion Gaps
Insulation
- Sidewalls: High Density Block Foam Insulation (R9)
- Roof: Fiberglass Batten Insulation and Radiant Foil Insulation (R38)
- Main Floor: High Density Block Foam Insulation and Radiant Foil Insulation (R38)
- Sub floor: Honey Combed Polyurethane with Aluminum Radiant Foil Insulation and Direct Forced Air Heat
- Front Wall: Fiberglass Insulation and Radiant Foil Insulation (R38)
- End Wall: Fiberglass Insulation and Radiant Foil Insulation (R38)
Options
- Serta Bellagio Deluxe King Sized Pillow Top Mattress
- Queen Bed (IPO King)
- Extra Dinette Chair
- Theater Seats
- Electric Theater Seats (N/A 3825FL)
- Stainless Steel Appliance Package (Includes convection microwave)
- 18 cu. ft. 4-Door Gas/Electric Refrigerator (N/A 3030RS)
- Dishwasher (N/A 3030RS)
- Residential Refrigerator with 2,000W Inverter (3030RS)
- 32″ Galley TV (3825FL Only)
- Stackable Washer/Dryer
- Fantastic Fan with Rain Sensor – Bedroom (N/A with second AC)
- Full-body Paint Package
- 3, 4 or 5 Slide-out Awnings
- Low Profile 13,500 BTU Ducted AC in Bedroom (Std. 3825FL)
- Third Low Profile 13,500 BTU Ducted AC in Living Area
- Heat Pump for 15,000 BTU AC
- Dual Pane Frameless Windows with Safety Glass
- Generator Prep
- 5.5 LP Generator (Includes prep)
- “Level Up” 6-Point One Touch Automatic Hydraulic Leveling System
- Outside Ice Maker
- Bike Hitch
- Exterior Entertainment Center with 32″ LED TV
- Premium G-rated Tires
- Dexter® 7,000 lb. Axle Hydraulic Disc Brakes
Electrical Systems
- Centralized Command Center and Monitor Panel
- 70 AMP Converter (Progressive Dynamics)
- 50 AMP Service
- Marine Grade Detachable 50 AMP Power Cord
- 12 Volt Battery Disconnect
- Battery Prep Box (2)
- Energy Management System (Third A/C prep)
- Manual Power Cord Reel
- 2 Burner Induction Stove Top
- Furrion Double Drawer Dishwasher
- 3 Dometic Quiet Cool Air Conditioners
- Serta Bellagio Opulenza King Super Pillow Top Mattress
- Auto Drawer Glides in Living Area
- Keyless Entry
- Dexter 8000 lb. Axles
- G-Rated Tires
- Mor Ryde 4000 Suspension
- Lighted Kitchen Backsplash
- Stainless Steel Convection Microwave
- High End Spring High Rise Kitchen Faucet
- New High End Full Body Paint
See us for a complete list of features and available options.
All features and specifications are subject to change.
All features and specifications are subject to change.
Favorite RVs
Save your favorite RVs as you browse. Begin with this one!
What Other Customers Are Saying
-
Joshua from Port Orford, ORAwesome Service
Quality. Diligence. The service department is amazing and always follows up as well as the on-site call that I had was absolutely amazing. The technicians really know what they’re doing and I would highly recommend buying an RV at Gibbs because their service is amazing. -
Chuck from Edna Bay, AKService
Everything, cost and service! Friendly and helpful! Hats off to Duane and crew -
Reid from Coos Bay, ORCustomers really matter
From the start Nick showed us exactly what we asked for. No attempt at trying to get us into something we didn’t want. Then we met Amanda, super professional and knowledgeable. Finally Sam, what a wonderful guy. Insured we did our due diligence to insure we were aware of what we were getting and insure
We are here to help!
Loading
An error occurred while rendering the macro FormSnippet.
An error occurred while rendering the macro FormSnippet.
An error occurred while rendering the macro FormSnippet.
Gib's RV Superstore is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @800-824-4388 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
